Product
SUNLIGHT 6SX LF
PVC insulated oil flexible cable for electrical power supply(with shield)
Application
Environmental type cable as machine tools, construction machinery, applications under harsh conditions, such as a robot power circuit not higher than 600V.
Oil, flexibility of use.Rated voltage:600V. Temp:60°C.
Feature
Oil, heat, flame retardant and soft PVC forsheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
※Do not guarantee outdoor use.
Flame resisting : UL VW-1.
Conform to Electrical Appliance and Material Safety Law.
Application
Environmental type cable as machine tools, construction machinery, applications under harsh conditions, such as a robot power circuit not higher than 600V.
Oil, flexibility of use.Rated voltage:600V. Temp:60°C.
Feature
Oil, heat, flame retardant and soft PVC forsheath.
Sheath material is non-migratory against ABS and PS resin.
Chemical, water, abrasion, cold resistance PVC for sheath.
※Do not guarantee outdoor use.
Flame resisting : UL VW-1.
Conform to Electrical Appliance and Material Safety Law.

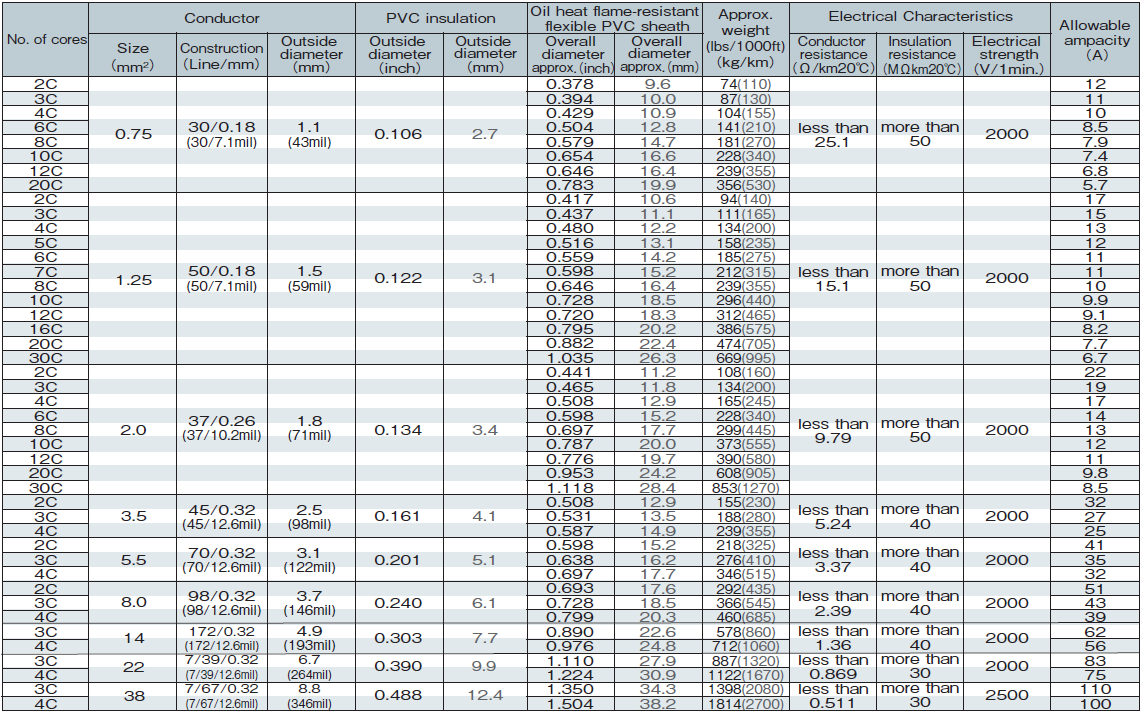

| Category | Power |
|---|---|
| AWG | - |
| SQ（mm2） | 0.75 - 38 |
| Core (pair) | Multi |
| Use | Fix |
| Shield | Have |
| Voltage | 600V |
| Rating temperature | 60°C |
| Standards |
 |
| Characteristics | Oil, Weather |
