Product
UE/THHW LF
Electric wire for general wiring
Application
Electric wire for North America and EU.
Passed the UL vertical tray flame-retardant test, it can be used in the cable tray, Raceway. and the race way,(circuit conductor=1/0AWG or more, grand conductor=4AWG or more).
Electric wire with UL and cUL at 600V, 90°C. (Category : ZKHZ, ZLGR, ZLGR7)
CE marking. (TÜV recognition product)
(Certificate of TÜV No.J50005945)
Obtaining UL Listed MTW, this wire compliants to NFPA 70 and 79.
Feature
Heat resistant PVC used for insulation.
Flame resisting : UL VW-1, cUL FT1.
Application
Electric wire for North America and EU.
Passed the UL vertical tray flame-retardant test, it can be used in the cable tray, Raceway. and the race way,(circuit conductor=1/0AWG or more, grand conductor=4AWG or more).
Electric wire with UL and cUL at 600V, 90°C. (Category : ZKHZ, ZLGR, ZLGR7)
CE marking. (TÜV recognition product)
(Certificate of TÜV No.J50005945)
Obtaining UL Listed MTW, this wire compliants to NFPA 70 and 79.
Feature
Heat resistant PVC used for insulation.
Flame resisting : UL VW-1, cUL FT1.

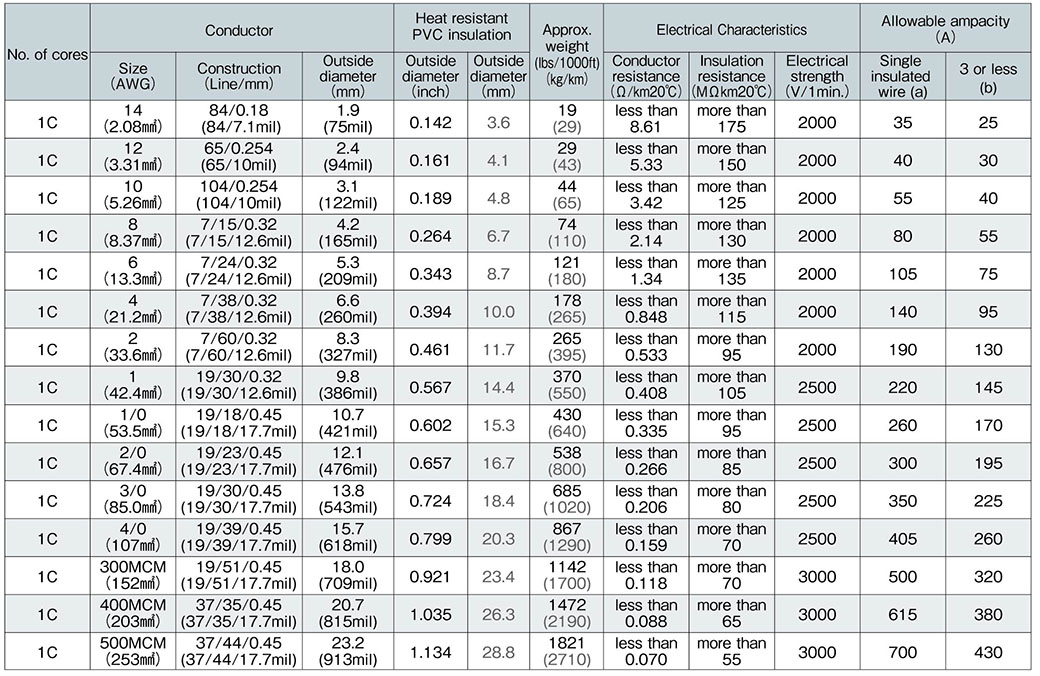

| Category | Power |
|---|---|
| AWG | 14 - 400MCM |
| SQ（mm2） | 2 - 200 |
| Core (pair) | Single |
| Use | Fix |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 90°C |
| Standards |
   |
| Characteristics | Oil, Heat |
