Product
TTC-2/2501 LF
Electronic equipment robot cable
Application
Appropriate for cable chain wiring for high-speed moving.
Cable chain test 10 million times or more.
Robot cable with UL and cUL at 600V 105°C. (Category : AVLV2, AVLV8)

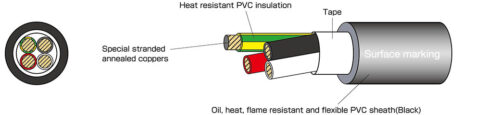

Feature
Extremely fine special conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Application
Appropriate for cable chain wiring for high-speed moving.
Cable chain test 10 million times or more.
Robot cable with UL and cUL at 600V 105°C. (Category : AVLV2, AVLV8)
Feature
Extremely fine special conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Flame resisting : UL VW-1, cUL FT1.

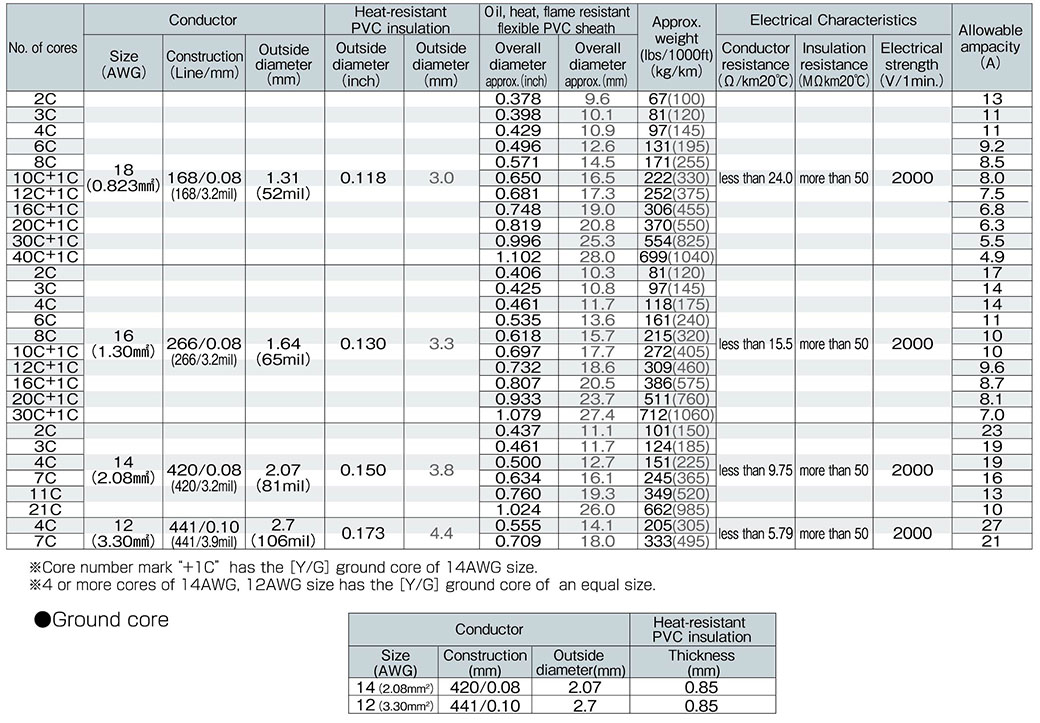

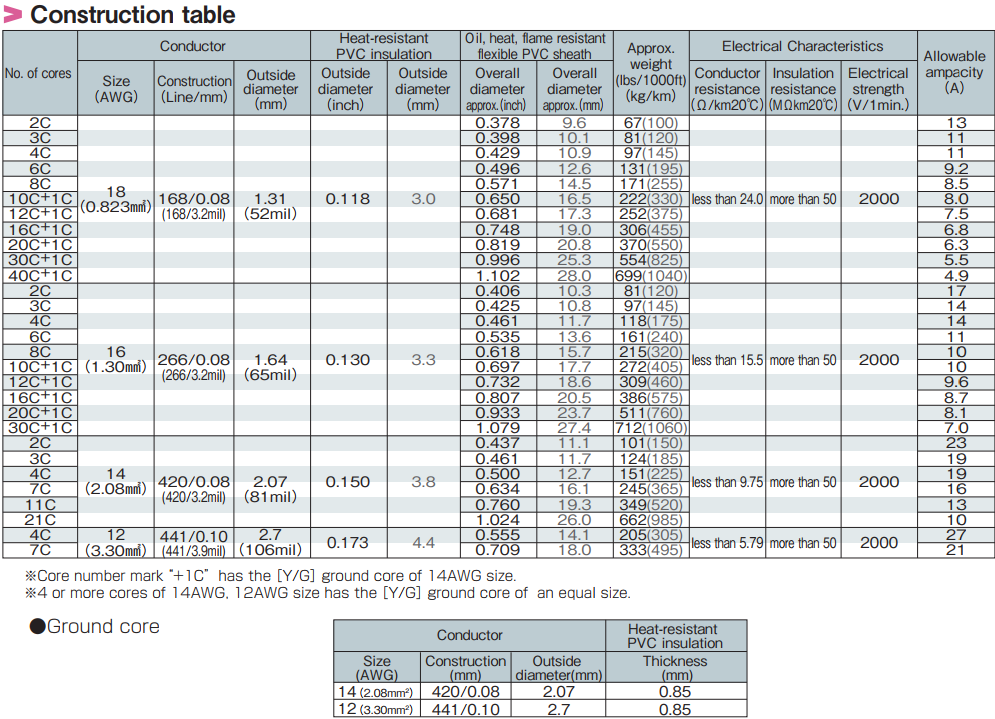

| Category | Power |
|---|---|
| AWG | 18 - 12 |
| SQ（mm2） | 0.75 - 3.5 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | None |
| Voltage | 600V |
| Rating temperature | 105°C |
| Standards |
  |
| Characteristics | Oil, Heat, Flexible, Twisting |
