Product
600V EXT-X-SB/2501 LF
Electronic equipment robot cable
Application
Appropriate for cable bare wiring for high-speed moving.
Cable chain test 50 million times or more. (or more ability 100 million times)
Shielded Robot cable with UL and cUL at 600V 105°C. (Category : AVLV2, AVLV8)

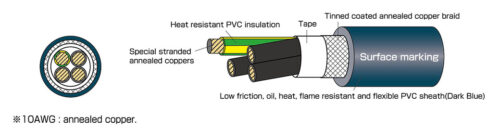

Feature
Fine wire conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Application
Appropriate for cable bare wiring for high-speed moving.
Cable chain test 50 million times or more. (or more ability 100 million times)
Shielded Robot cable with UL and cUL at 600V 105°C. (Category : AVLV2, AVLV8)
Feature
Fine wire conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.

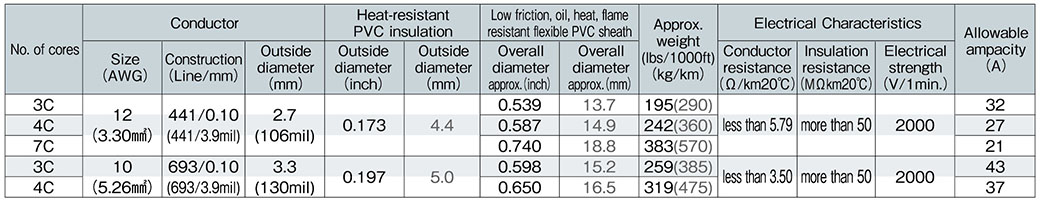

| Category | Power |
|---|---|
| AWG | 12 - 10 |
| SQ（mm2） | 3.5 - 5.5 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | Have |
| Voltage | 600V |
| Rating temperature | 105°C |
| Standards |
  |
| Characteristics | Oil, Heat, Flexible, Twisting, Wear |
