Product
EXT-2-SB/20276 LF
Electronic equipment robot cable
Application
Appropriate for cable chain wiring for high-speed moving.
Cable chain test 50 million times or more. (or more ability 100 million times)
Shielded Robot cable with UL and cUL at 30V,80°C. (Category : AVLV2, AVLV8)
Feature
Extremely fine special conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.
Application
Appropriate for cable chain wiring for high-speed moving.
Cable chain test 50 million times or more. (or more ability 100 million times)
Shielded Robot cable with UL and cUL at 30V,80°C. (Category : AVLV2, AVLV8)
Feature
Extremely fine special conductor use.
Low friction and heat resistant PVC used for insulation.
Oil and heat resistant PVC used for sheath.
Low friction material used for sheath.
Flame resisting : UL VW-1, cUL FT1.

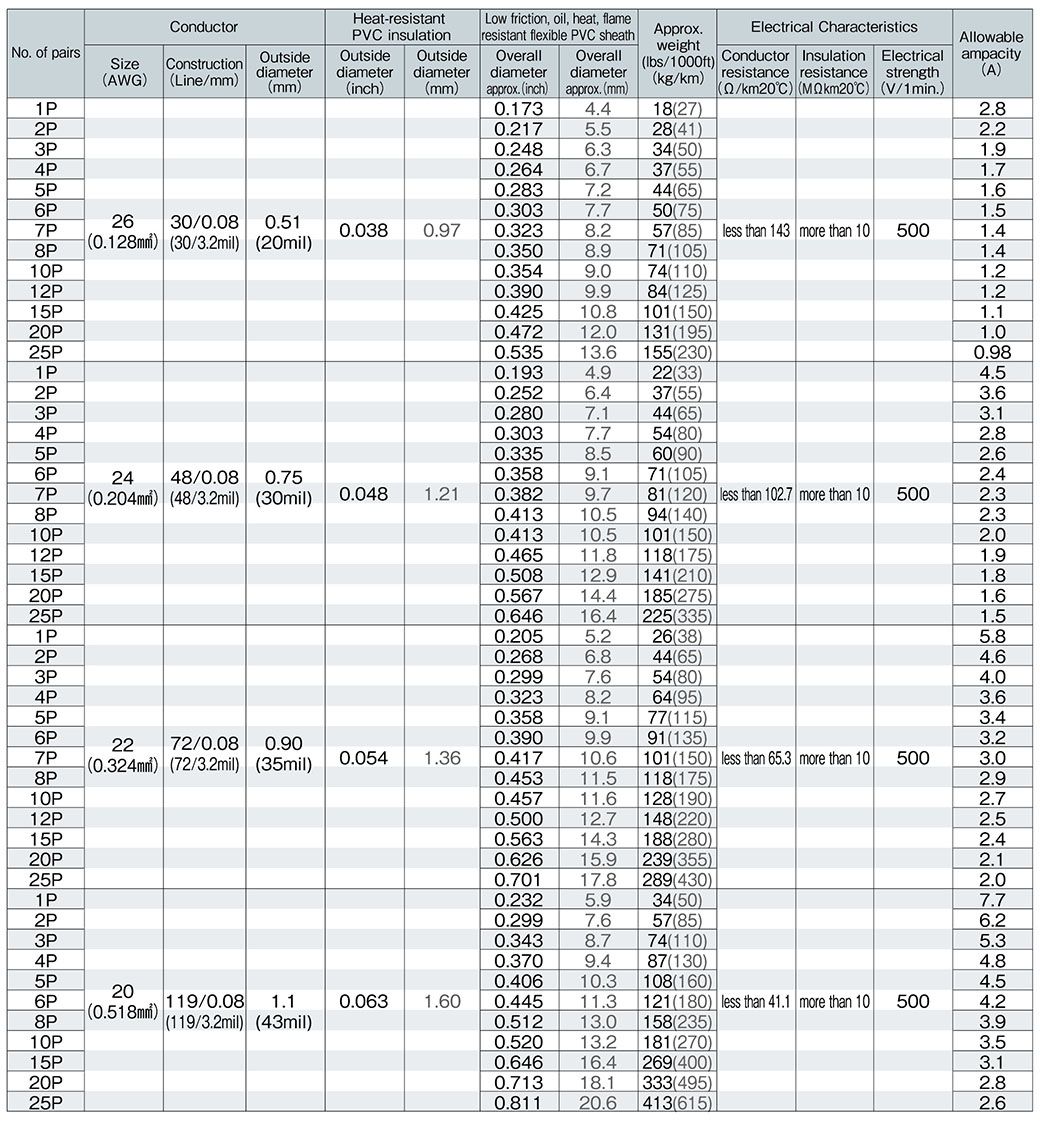

| Category | Signal and instrumentation |
|---|---|
| AWG | 28 - 20 |
| SQ（mm2） | 0.08 - 0.5 |
| Core (pair) | Multi |
| Use | Moving |
| Shield | Have |
| Voltage | 30V |
| Rating temperature | 80°C |
| Standards |
  |
| Characteristics | Oil, Heat, Flexible, Twisting, Wear |
